| GARRETT |
465505-0003 |

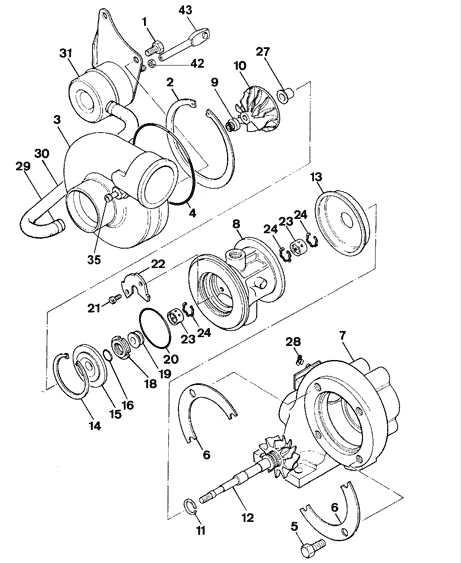

Figure |
465505-0003 GARRETT-PART LIST |
Quantity |
Code |
Code |
| GARRETT |
465505-0003 |
- |
Cartridge: |
1 |
443854-0144 |
4438540144 |
| GARRETT |
465505-0003 |
- |
Repair Kit: |
1 |
709143-0001 |
7091430001 |
| GARRETT |
465505-0003 |
1 |
Screw ( actuator ) |
2 |
400724-0610 |
4007240610 |
| GARRETT |
465505-0003 |
2 |
Retaining ring ( compressor housing ) |
1 |
400589-0334 |
4005890334 |
| GARRETT |
465505-0003 |
3 |
Caracola admisión m. |
1 |
409589-0226 |
4095890226 |
| GARRETT |
465505-0003 |
4 |
O ring ( compressor housing ) |
1 |
403069-0072 |
4030690072 |
| GARRETT |
465505-0003 |
5 |
Bolt ( turbine side ) |
4 |
400677-0816 |
4006770816 |
| GARRETT |
465505-0003 |
6 |
Clamp ( turbine housing ) |
2 |
432726-0001 |
4327260001 |
| GARRETT |
465505-0003 |
7 |
Turbine housing |
1 |
430609-0128 |
4306090128 |
| GARRETT |
465505-0003 |
8 |
Bearing housing |
1 |
435349-0008 |
4353490008 |
| GARRETT |
465505-0003 |
9 |
Shaft nut |
1 |
435255-0001 |
4352550001 |
| GARRETT |
465505-0003 |
10 |
Compressor wheel |
1 |
410450-0011 |
4104500011 |
| GARRETT |
465505-0003 |
11 |
Piston ring ( turbine side ) |
1 |
400749-0006 |
4007490006 |
| GARRETT |
465505-0003 |
12 |
Turbine wheel |
1 |
433261-0001 |
4332610001 |
| GARRETT |
465505-0003 |
13 |
Heat shield |
1 |
445118-0001 |
4451180001 |
| GARRETT |
465505-0003 |
14 |
Retaining ring ( plato insercción ) |
1 |
400589-0181 |
4005890181 |
| GARRETT |
465505-0003 |
15 |
Plate insercción |
1 |
432280-0001 |
4322800001 |
| GARRETT |
465505-0003 |
17 |
Piston ring ( compressor side ) |
1 |
403818-0009 |
4038180009 |
| GARRETT |
465505-0003 |
19 |
Thrust collar |
1 |
443852-0002 |
4438520002 |
| GARRETT |
465505-0003 |
20 |
O ring ( plato insercción ) |
1 |
403069-0163 |
4030690163 |
| GARRETT |
465505-0003 |
21 |
Screw ( coj. empuje ) |
3 |
400810-0410 |
4008100410 |
| GARRETT |
465505-0003 |
22 |
Thrust bearing |
1 |
432254-0002 |
4322540002 |
| GARRETT |
465505-0003 |
23 |
Bearing |
2 |
435082-0001 |
4350820001 |
| GARRETT |
465505-0003 |
24 |
Retaining ring ( bearing ) |
3 |
444428-0001 |
4444280001 |
| GARRETT |
465505-0003 |
27 |
Spacer |
1 |
- |
- |
| GARRETT |
465505-0003 |
28 |
Retaining ring ( actuator ) |
1 |
400702-0025 |
4007020025 |
| GARRETT |
465505-0003 |
29 |
V clamp ( hose ) |
2 |
413529-0003 |
4135290003 |
| GARRETT |
465505-0003 |
30 |
Hose ( actuator ) |
1 |
400817-0006 |
4008170006 |
| GARRETT |
465505-0003 |
31 |
Actuator |
1 |
432613-0007 |
4326130007 |
| GARRETT |
465505-0003 |
35 |
Fitting
( compressor housing ) |
1 |
- |
- |
| GARRETT |
465505-0003 |
42 |
Nut ( rod end actuator ) |
1 |
430893-0006 |
4308930006 |
| GARRETT |
465505-0003 |
43 |
Rod end ( actuator ) |
1 |
432012-0004 |
4320120004 |
| GARRETT |
465505-0003 |
105 |
Gasket ( turbine outlet ) |
1 |
- |
- |
| GARRETT |
465505-0003 |
155 |
Stud ( turbine housing ) |
4 |
432546-0002 |
4325460002 |
